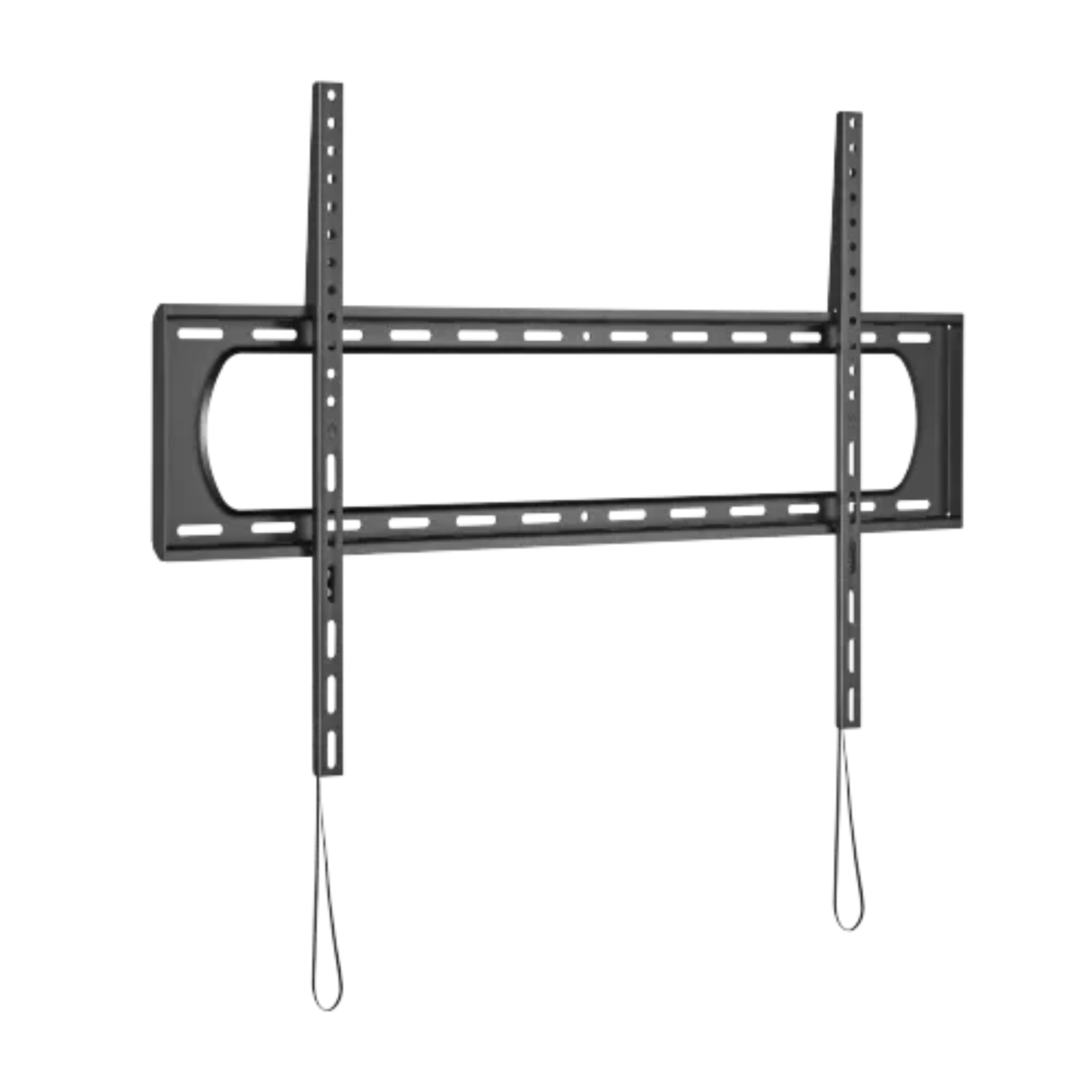

VSYS VS01A-69F Fit Screen Size of 67″ to 120″ With Quick-Release Spring Lock Heavy-Duty Tilt TV Wall Mount
Key Feature Of VSYS VS01A-69F Mount
-
➤ High Load Capacity – Supports TVs up to 120 kg, ideal for large screens.
-
➤ Durable Steel Build – Made from strong cold-rolled steel for stability.
-
➤ Universal VESA Fit – Compatible with 50×50 to 600×400 patterns.
-
➤ Quick-Release Lock – Enables fast, tool-free installation and removal.
-
➤ Low-Profile Mount – Keeps TV about 30 mm from the wall for a clean look.
PRODUCT OVERVIEW
The Need for Secure and Reliable TV Mounts in Professional Environments
VS01A-69F To address the gap in the niche market of heavy-duty large-sized TV wall mounts, the VS01A-69F Affordable Heavy-Duty TV Wall Mount is a reasonable solution. A stiffener structure levels the weight capacity up to 120kg/264lbs to firmly hold 60’’~120’’ TVs. Ample space in the center is perfect for installing the socket outlet and concealing all the messy cables. A quick-release spring lock allows TV removal quick and easy and only takes seconds to install. Choose VS01A-69F to grasp more market share quickly!
The VSYS VS01A-46F Fixed TV Wall Mount UAE offers a strong and reliable solution for medium to large displays ranging from 60″ to 120″. Built for heavy-duty performance, this VSYS AV wall bracket combines solid construction, a slim-mounted profile, and straightforward installation, making it an excellent choice for professionals seeking a secure and long-lasting display mounting option.
In this article, we’ll explore how the VS01A-46F heavy-duty tilt TV wall mount sets a new standard for professional AV installations, why tilt mounts are a preferred choice for many installers, and how selecting the right wall mount can significantly improve viewing comfort, ensure safety, and enhance the overall aesthetic of any space.
Key Benefits
-
Ultra-Slim Design: Keeps the display close to the wall for a modern, professional look.
-
Universal Compatibility: Works with most brands and models of flat-panel TVs and displays.
-
Quick Installation: Pre-assembled for efficient setup.
-
Exceptional Strength: Engineered to handle heavy-duty usage in professional environments.
-
Long-Term Reliability: Built for years of performance without the need for maintenance.
| Product Name | VSYS VS01A-69F Fit Screen Size of 67″ to 120″ With Quick-Release Spring Lock Heavy-Duty Tilt TV Wall Mount |
|---|---|
| Product Type | Fixed TV Wall Mount |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.079″ cold-rolled sheet,Wall Plate THK=0.079″ cold-rolled sheet) |
| Surface Finish | Powder Coating |
| Fit Screen Size | 60″-120″ |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 50×50,75×75,100×100,100×150, 150×100,100×200,200×100,150×150, 200×200,200×300,300×200, 200×400,400×200,300×300, 300×400,400×300,600×200, 400×400,600×300,400×600, 600×400,700×400,800×400, 600×600,800×500,800×600, 900×600 |
| Max. Mounting Hole | 974x602mm |
| Weight Capacity | 120kg (264lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 35mm (1.4″) |
| Installation method | Solid Wall,Double Stud(406mm/450mm/600mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Direction Indicator | Yes |
| Cable Management | No |
| Anti Theft | No |
| Accessory Kit Package | Normal/Ziplock Polybag,Compartment Polybag |

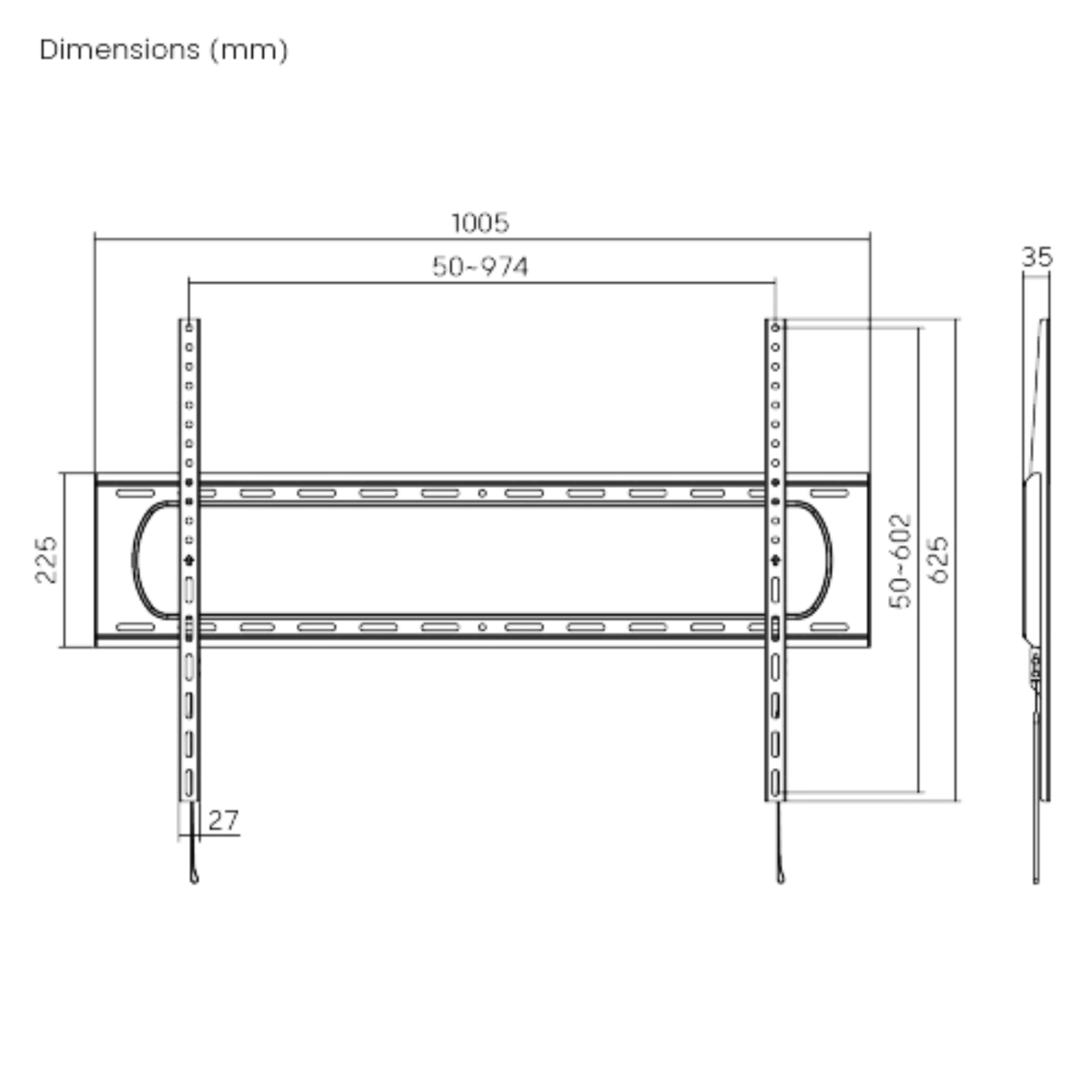

| Dimensions | 35x1005x625mm (1.4″x39.6″x24.6″) |
| Manufacturer | VSYS |
| Color | Fine Texture Black |
