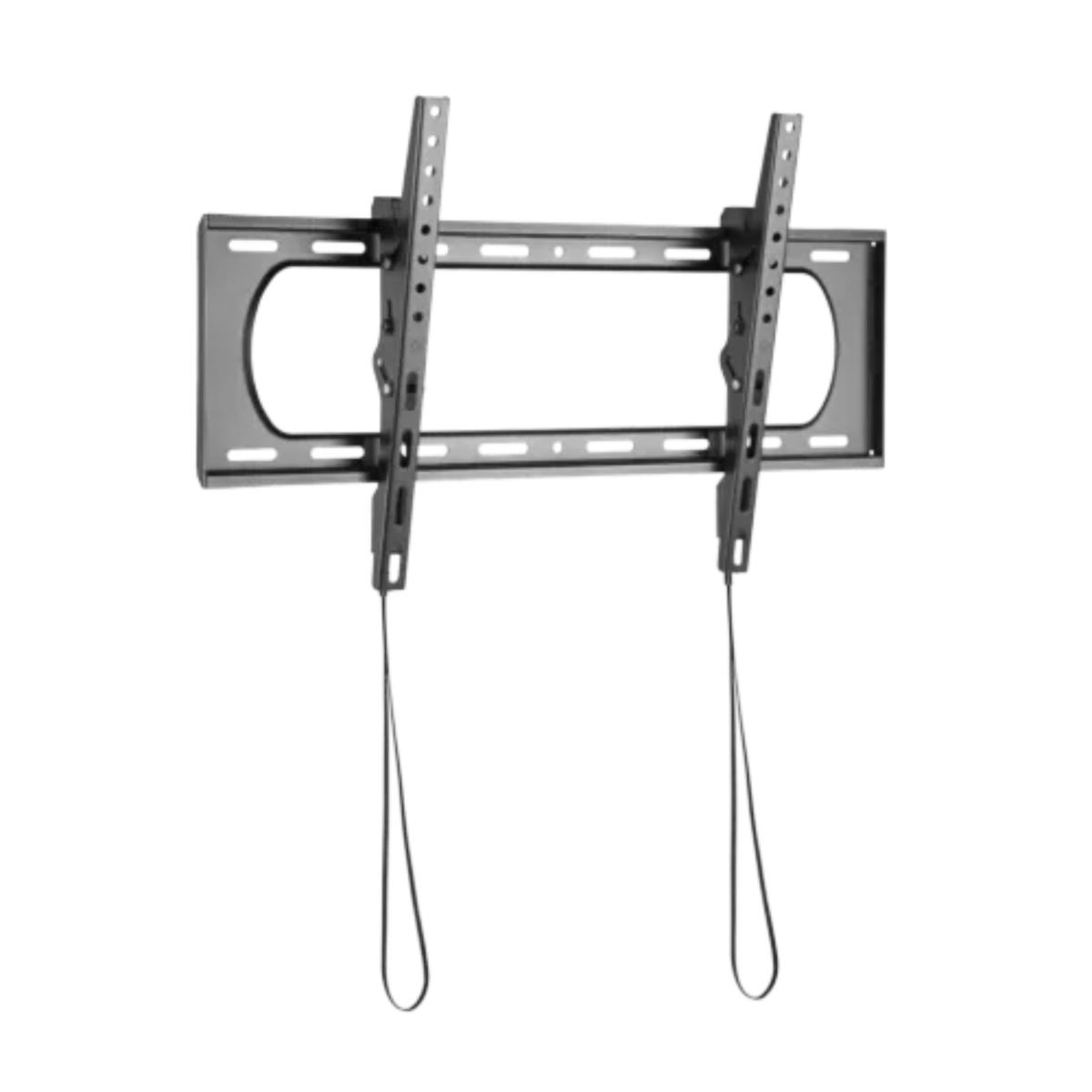

VSYS VS01A-46T Fit Screen Size of 37″ to 80″ With Quick-Release Spring Lock Heavy-Duty Tilt TV Wall Mount
Key Feature Of VSYS VS01A-46T Mount
-
➤ Supports Heavy TVs: Up to 120 kg (264 lbs), fits 60″–120″ screens.
-
➤ Wide VESA Compatibility: 50×50 to 900×600 mm, including curved TVs.
-
➤ Durable & Safe: 2 mm steel build with quick-release spring lock.
-
➤ Adjustable Tilt: ±10° for optimal viewing angle.
-
➤ Low-Profile Design: 80 mm from the wall with easy installation and a level guide.
PRODUCT OVERVIEW
The Need for Secure and Reliable TV Mounts in Professional Environments
To address the gap in the niche market of heavy-duty large-sized TV wall mounts, the VS01A-46T Affordable Heavy-Duty TV Wall Mount is a reasonable solution. A stiffener structure levels the weight capacity up to 80kg/176lbs to firmly hold 37’’~80’’ TVs. Ample space in the center is perfect for installing the socket outlet and concealing all the messy cables. +10°~-10° toolless tilting mechanism provides the perfect viewing angle. A quick-release spring lock allows TV removal quick and easy and only takes seconds to install. Choose VS01A-46T to grasp more market share quickly!
The VSYS VS01A-46F Fixed TV Wall Mount UAE is a robust mounting solution designed for medium to large displays (37″–70″). This heavy-duty TV wall bracket from VSYS AV delivers exceptional strength, a sleek profile, and easy installation, making it the perfect choice for AV professionals who require durable and secure display setups.
In this article, we’ll explore how the VS01A‑69T heavy-duty tilt TV wall mount sets a new standard for professional AV installations, why tilt mounts are a preferred choice for many installers, and how selecting the right wall mount can significantly improve viewing comfort, ensure safety, and enhance the overall aesthetic of any space.
Key Benefits
-
Ultra-Slim Design: Keeps the display close to the wall for a modern, professional look.
-
Universal Compatibility: Works with most brands and models of flat-panel TVs and displays.
-
Quick Installation: Pre-assembled for efficient setup.
-
Exceptional Strength: Engineered to handle heavy-duty usage in professional environments.
-
Long-Term Reliability: Built for years of performance without the need for maintenance.
| Product Name | VSYS VS01A-46T Fit Screen Size of 37″ to 80″ With Quick-Release Spring Lock Heavy-Duty Tilt TV Wall Mount |
|---|---|
| Product Type | Tilt TV Wall Mount |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=1.8mm cold-rolled sheet,Wall Plate THK=1.8mm cold-rolled sheet (Bracket Arm THK=0.071″ cold-rolled sheet,Wall Plate THK=0.071″ cold-rolled sheet) |
| Surface Finish | Powder Coating |
| Fit Screen Size | 60″-120″ |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 50×50,75×75,100×100,100×150,150×100, 100×200,200×100,150×150,200×200, 200×300,300×200,200×400, 400×200,300×300,300×400, 400×300,600×200,400×400, 600×300,600×400 |
| Max. Mounting Hole | 645x402mm |
| Weight Capacity | 80kg (176lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 60mm (2.4″) |
| Installation method | Solid Wall,Double Stud(406mm/450mm/600mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Cable Management | No |
| Anti Theft | No |
| Accessory Kit Package | Normal/Ziplock Polybag,Compartment Polybag |

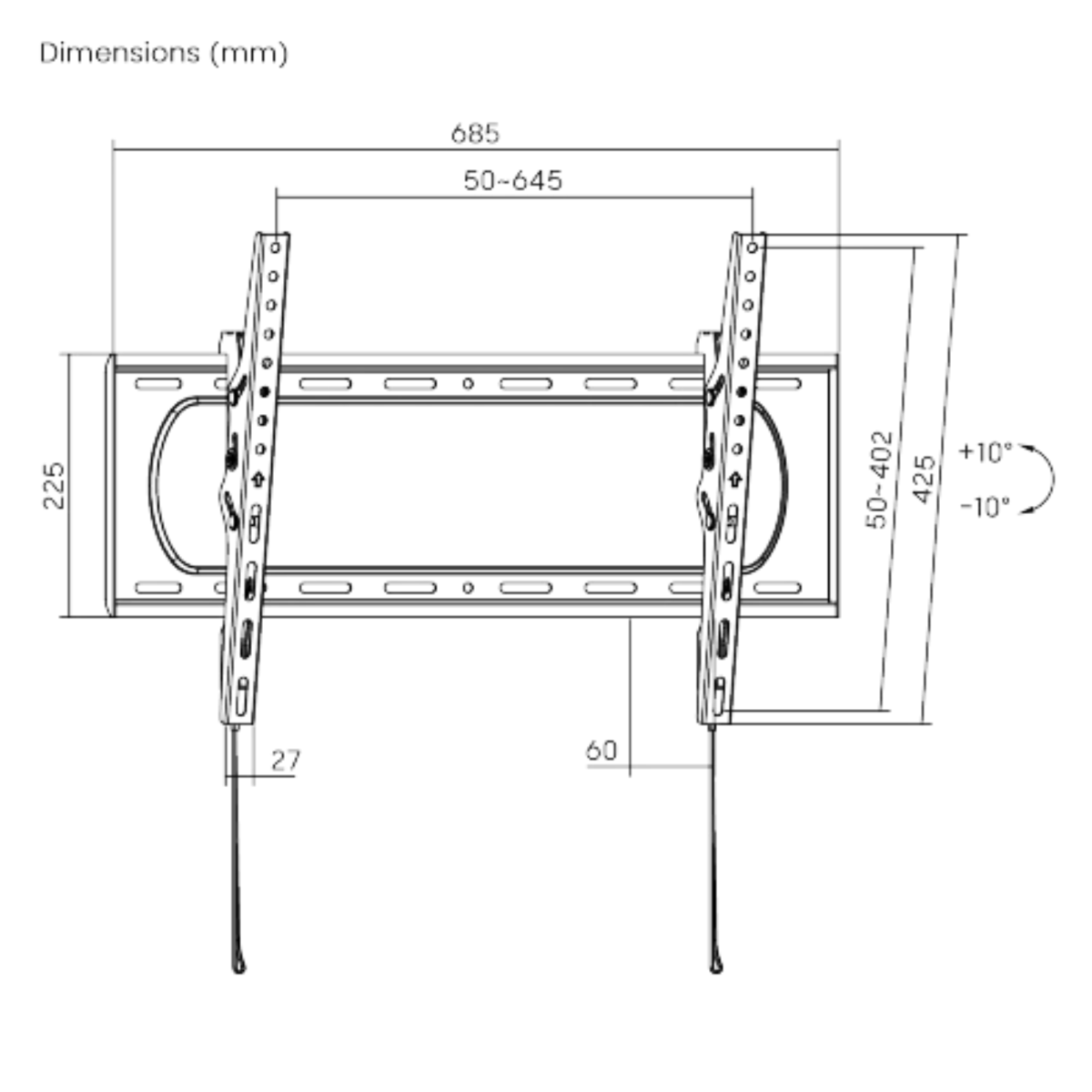

| Dimensions | 60x685x425mm (2.4″x27″x16.7″) |
| Manufacturer | VSYS |
| Color | Fine Texture Black |
