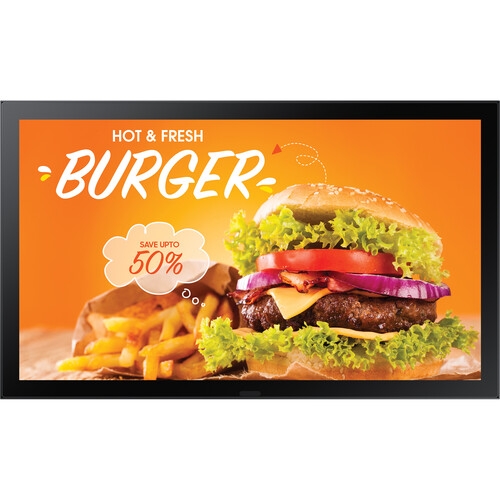

PRODUCT OVERVIEW

Purpose-Built Outdoor Signage Display

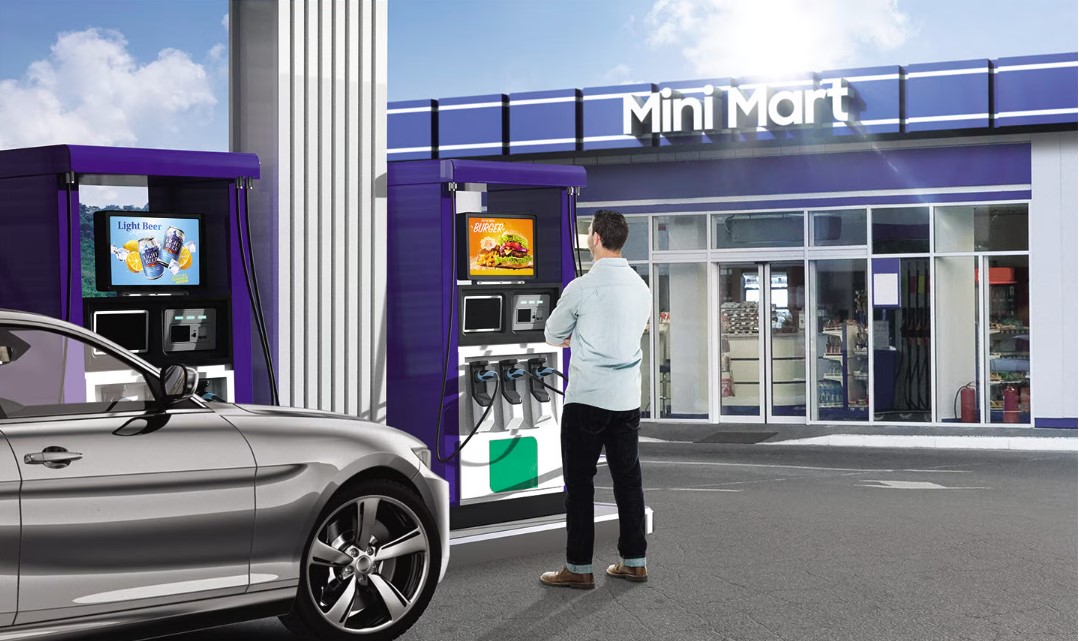

The Samsung Outdoor Signage OH24B (LH240HBEBGBXUE) is a 24-inch Full HD outdoor digital signage display designed to deliver high-impact visual communication for outdoor environments. It’s engineered for use in storefront advertising, outdoor points of sale, information kiosks, transport hubs, and other exterior commercial settings where visibility and reliability are critical.

Exceptional Outdoor Visibility

A standout capability of the OH24B is its peak brightness of 1,500 nits, making it capable of maintaining clear, vibrant content even in broad daylight or under direct sunlight. It is also UL-verified for outdoor visibility, ensuring that signage remains readable for passersby with sunglasses or in brightly illuminated conditions.

Durable Weather Resistance (IP66 Rated)

The device carries a robust IP66 ingress protection rating, offering advanced resistance to both dust and water. This high level of sealing ensures that the signage continues to operate reliably through rain, wind-blown dust, and other outdoor environmental challenges without performance degradation.

Impact-Resistant Protection Glass (IK10 Rated)

To safeguard the screen against physical impacts, the OH24B uses Advanced Magic Glass with IK10 certification, one of the highest levels of impact resistance. This means the front glass protects against attempted vandalism or accidental hits, making it a suitable choice in public, high-traffic outdoor spaces.

Automatic Brightness Adjustment

The display incorporates an ambient light sensor that intelligently adjusts brightness in response to changing lighting conditions. This helps maintain optimal visibility while also conserving energy by lowering brightness when intense illumination isn’t needed.

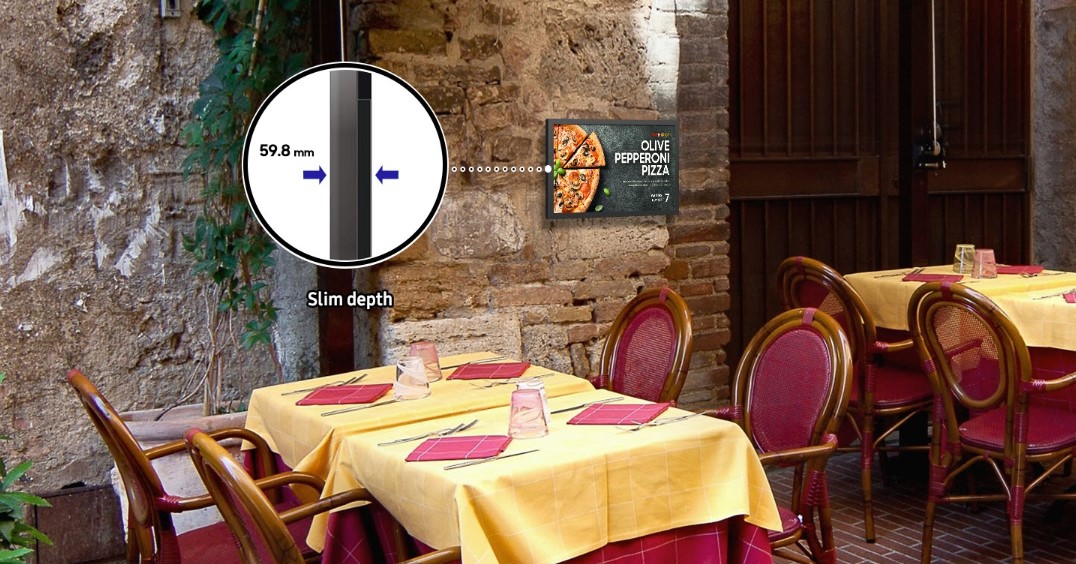

Compact and Practical Design

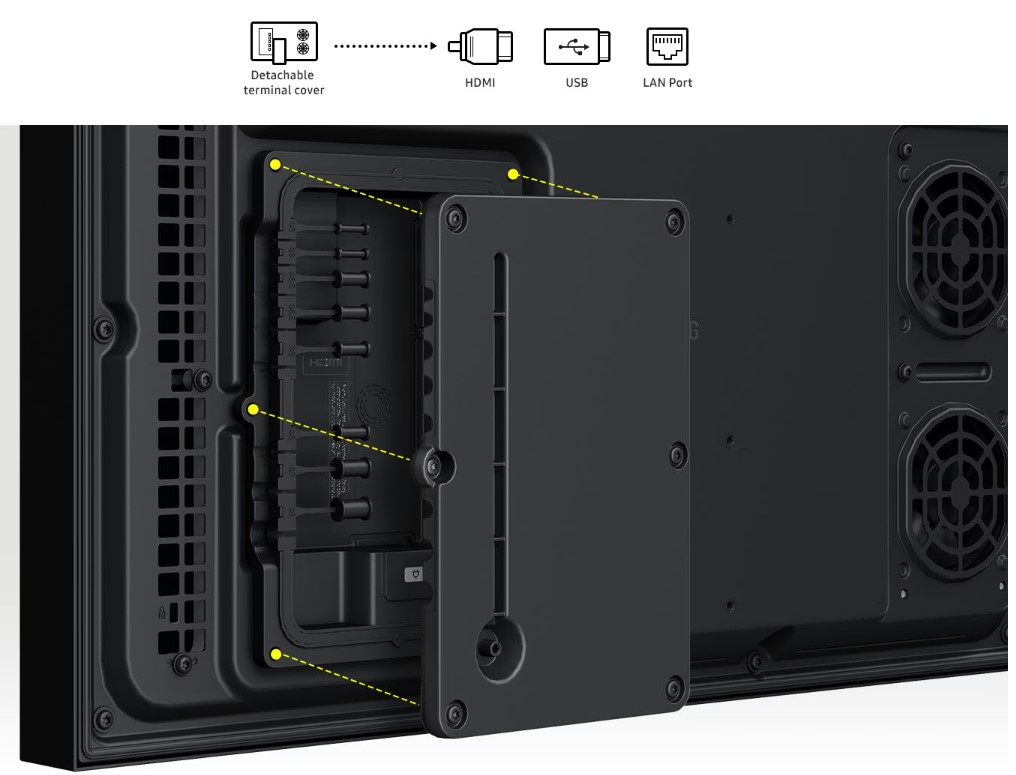

Despite its rugged capabilities, the OH24B retains a slim profile (approx. 59.8 mm depth) and relatively light weight (~8.4 kg), which simplifies installation in various outdoor locations — from building facades to freestanding structures. The smart design also includes a removable terminal cover for easy access to HDMI, USB, and LAN ports without dismantling the unit.

Flexible Connectivity Options

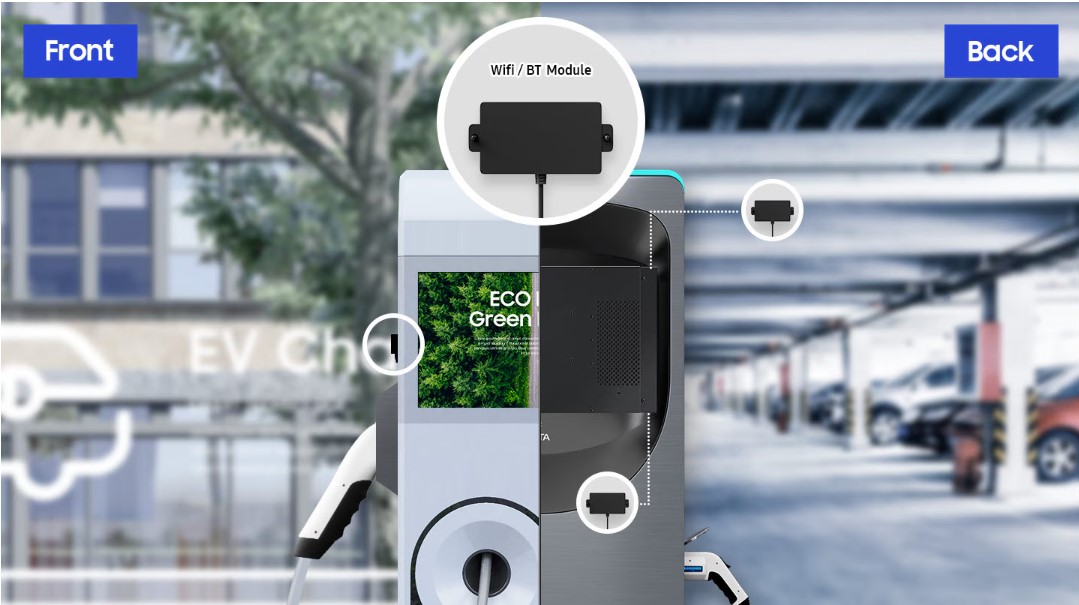

Connectivity on the OH24B covers the essentials for modern digital signage: HDMI 2.0, multiple USB 2.0 ports, Ethernet (RJ45), and RS-232C support. The unit also supports Wi-Fi and Bluetooth via an optional external module, enabling flexible content delivery options in locations where wired connections are impractical.

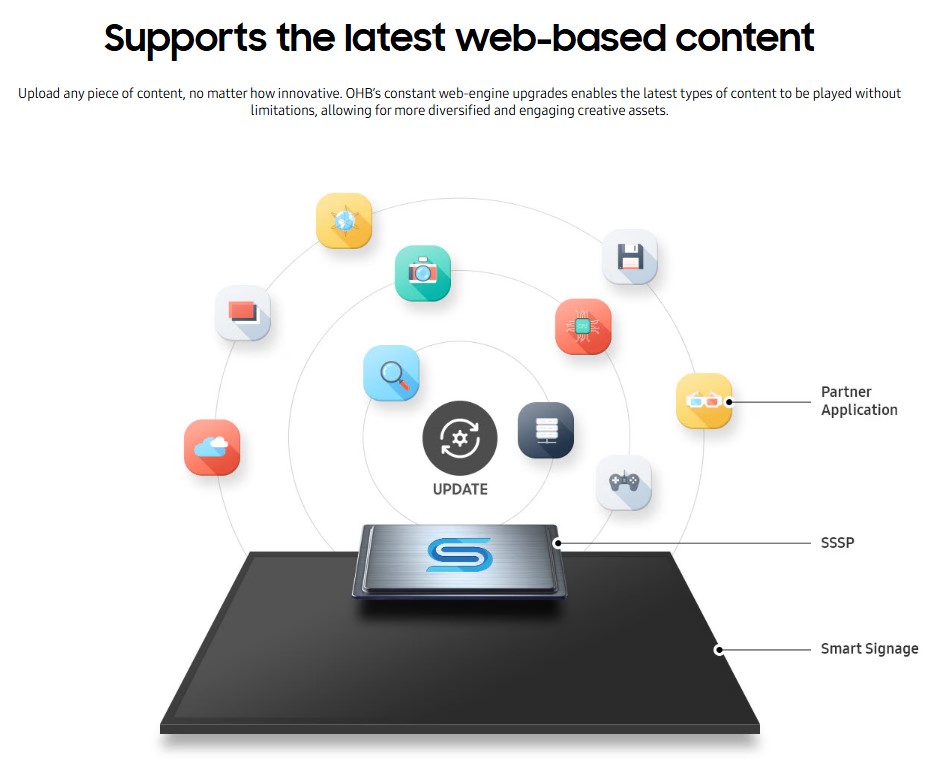

Built-In Smart Platform (Tizen OS)

Samsung equips this outdoor display with its Tizen 6.5 smart signage platform, which includes an integrated SoC (System on Chip) to run content and applications without requiring an external media player. It supports scheduling, multimedia playback, and cloud content management tools like Samsung MagicINFO™ 10 for remote control and content orchestration.

24/7 Continuous Operation Capability

Engineered for business demand, the OH24B supports 24/7 operation, meaning it can continuously display content day and night without performance loss — an essential trait for outdoor advertising, public information boards, and transport signage.

Energy Efficiency and Management

While providing high brightness and durability, the OH24B is designed with efficiency in mind. Its improved LED backlight and brightness control features reduce power consumption compared to conventional outdoor signage displays — a meaningful benefit in large deployments where energy costs can add up.

Product Features

Display & Performance

• 24″ diagonal screen with FHD resolution (1920 × 1080)

• 1,500 nits peak brightness for outdoor readability

• IPS panel with 178° viewing angles

• Contrast ratio approx. 1000:1

• 14 ms response time

Outdoor Durability

• IP66 water & dust protection for extreme outdoor conditions

• IK10 Advanced Magic Glass for impact resistance

• Ambient light sensor for auto brightness adjustment

• Operation temperature range approx. –30 °C to +50 °C

Smart & Connectivity

• Tizen 6.5 smart signage OS with built-in SoC

• HDMI 2.0, 2× USB 2.0, RJ45, RS-232C connectivity

• Optional Wi-Fi/Bluetooth module support

• CMS support (Samsung MagicINFO™) for remote management

Operational & Installation

• 24/7 continuous operation support

• VESA compatible mount options

• Slim, compact design with removable terminal cover for easy access

• Energy-efficient with enhanced LED backlight performance
