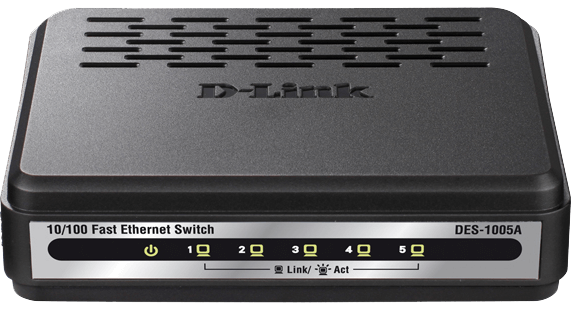

D-Link DES-1005A 5-Port 10/100BASE-T Unmanaged 10/100 Mbps Ethernet LAN Network Switch.
- Inexpensive Fast Ethernet solution for Home/SOHO.
- 5 10/100 Mbps Fast Ethernet ports.
- Auto MDI/MDIX crossover for all ports.
- Store-and-forward switching scheme.
- Full/half-duplex for Ethernet/Fast Ethernet speeds.
- IEEE 802.3x Flow Control.
- Plug-and-play installation.
- RoHS compliant.
|
Manufacturer |
D-Link |
|
Model No. |
DES-1005A |
|
Color |
Black |
|
Port packet Filtering/Forwarding Rate |
• 14,880 pps for 10M |
|
|
• 148,800 pps for 100M |
|
Number of Ports |
8-Port 10/100Base-T |
|
LAN |
• Compliant to following standards, |
|
|
1. IEEE 802.3 10BASE-T |
|
|
2. IEEE 802.3u 100BASE-TX compliance |
|
|
3. Support Auto-Negotiation for each port |
|
|
4. Support Half/Full-Duplex operations at 10/100Mbps. |
|
|
5. Support back pressure at Half-Duplex operation |
|
|
6. IEEE 802.3x Flow Control support. |
|
|
7. Auto MDI/MDIX |
|
|
8. Wire speed reception and transmission |
|
|
9. Store-and-Forward switching method |
|
|
10. supports 2K MAC addresses |
|
|
11. Supports 49KBytes RAM for data buffering |
|
|
12. front-panel diagnostics LEDs |
|
|
13. Switching Capacity 1Gbps |
|
|
14. RoHS compliant. |
|
|
15. EuP compliant. |
|
Dimension (W x D x H) |
97 x 79 x 28 mm |
| Product Name | D-Link DES-1005A 5-Port 10/100BASE-T Unmanaged 10/100 Mbps Ethernet LAN Network Switch. |
|---|
